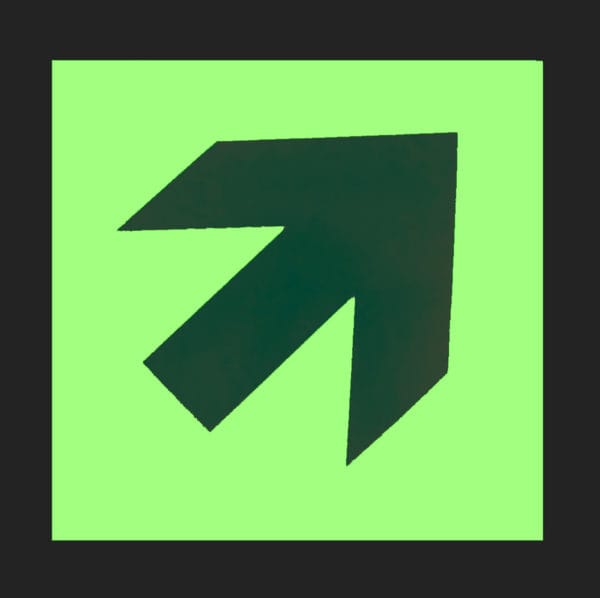

Photoluminescent Diagonal Arrow Directional Sign

A photoluminescent diagonal arrow sign. 5-inch by 5-inch square. An easy peel and stick application. Activated by natural artificial light.

Combine one Straight or Diagonal Arrow Sign with one Running Man Left or Right Sign to create directional signage. With only 4 symbols, you can mark any direction of your egress path. Just place one running man sign with one arrow sign pointing up or down to the exit floor. The arrows can be turned, so that each possible direction can be indicated. The directional signs are to is to be equally placed along the escape routes to direct occupants to the final exit.

Smooth easy cleanable surface.

  • Green arrow on photoluminescent background

  • 5” x 5”

  • Best when paired with Running Man

  • UL 1994 listed

Get A Sample
SKU: DAD Categories: ,

DOWNLOADS

Product Code: DAD Standard Options
Short Description Photoluminescent Diagonal Arrow Sign. For marking the egress path, final exit door and vestibule doors on higher floors.
Attachment Hardware Peel and Stick Adhesive Backing Included.

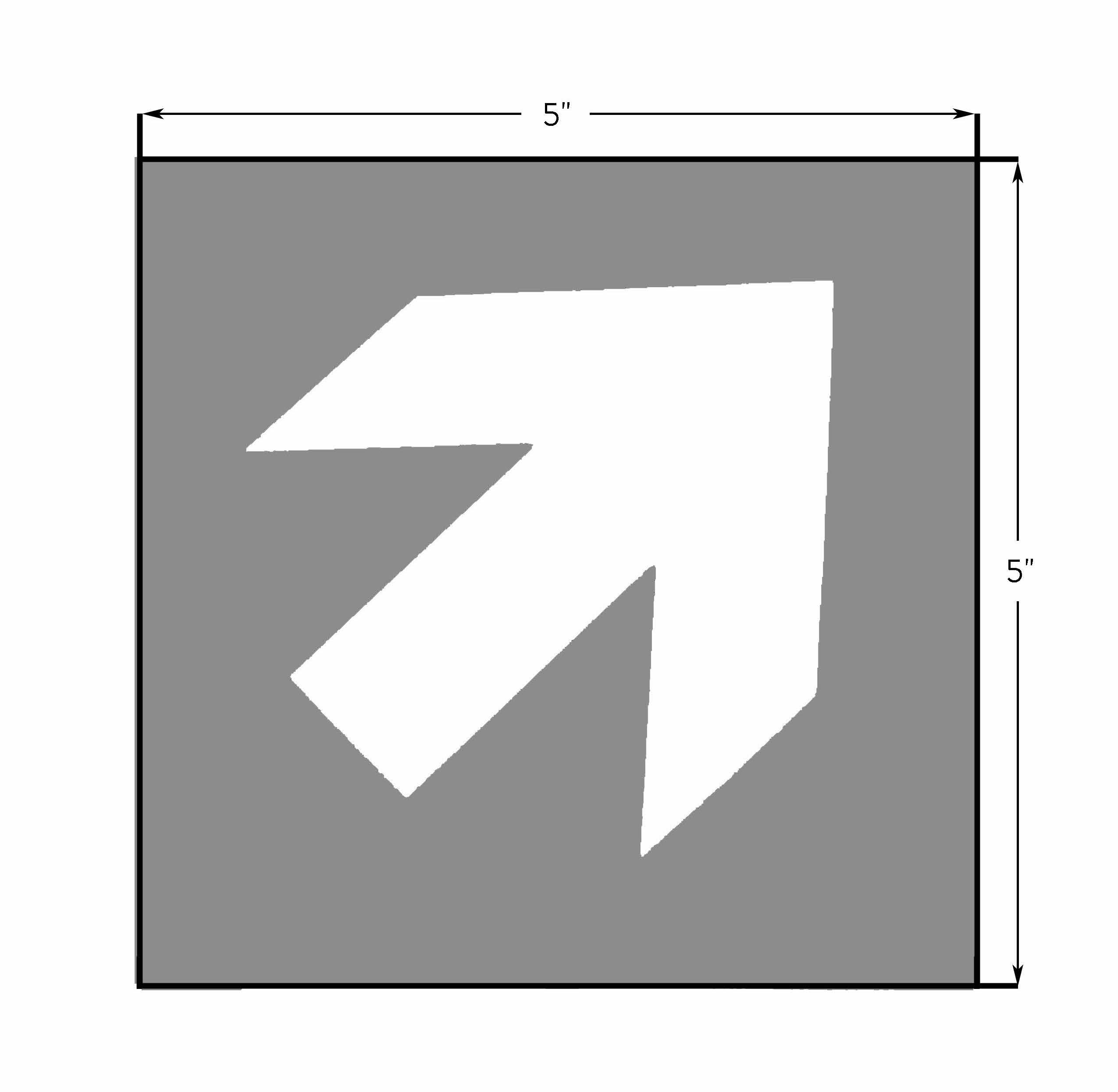

Size 5 Inch x 5 Inch Square

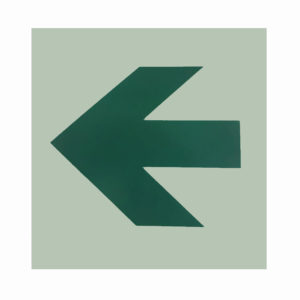

Related Products Running Man Left – Running Man Right – Straight Arrow

INTERNATIONAL BUILDING CODE

The Safe-T-Nose Luminous Egress Path Markings meet the following Building, Fire & Life Safety Codes:

  • 2009, 2012 — IBC/IFC Section 1024 – Luminous Egress Path Markings
  • 2015 & 2018 — Section 1025
  • 2009 — NFPA 101 and 170
  • 2013 — NYC LL 141 Section BC 1024 Luminous Egress Path Markings
  • 2004 — NYC LL 26 Of 2004 Reference Standard 6-1
  • Connecticut State Fire Safety Code Section 1026 Floor Proximity Egress Path Markings

Reviews

There are no reviews yet.

Be the first to review “DAD”

Your email address will not be published. Required fields are marked *

Related products

  • EVACFLTR

    EVACFLTR

    EVACFLTR
    Photoluminescent Evacuation Route Sign

    Photoluminescent Evacuation Route Signs provide occupants a visual action plan in the event of an emergency. Placed in corridors and rooms, spaces where the exits is the least obvious. These signs are custom made for each location within the building.

    • Photoluminescent background
    • 8” x 11”
    • Required in R1 occupancy
    SKU: evacfltr Categories: ,
  • UTMBT

    UTMBT

    UTMBT
    Mounting Bracket

    • 2 1/2” x 12” T-Bar bracket for ceiling mounting

    • Includes all hardware

    SKU: UTMBT Categories: ,
  • ISID

    ISID

    ISID
    Photoluminescent Stair Identification Sign

    Photoluminescent Stair Identification Signs (Per IBC) (AKA Stairway Identification Sign – per NFPA 101) are placed at each floor level in exit enclosures. The sign provides an important part of egress safety due to the information displayed. This sign is always custom-made with text to building needs. Black digital print lettering on photoluminescent background.

    • Required for every floor
    • 12” x 18” photoluminescent background
    • Identification of stair – minimum of 1 1/2” in height
    • Floor number – raised and a minimum of 5” in height
    • Braille to comply with ICC A117.1
    • UL 1994 listed
    SKU: ISID Categories: ,
  • DRMR

    DRMR

    DRMR

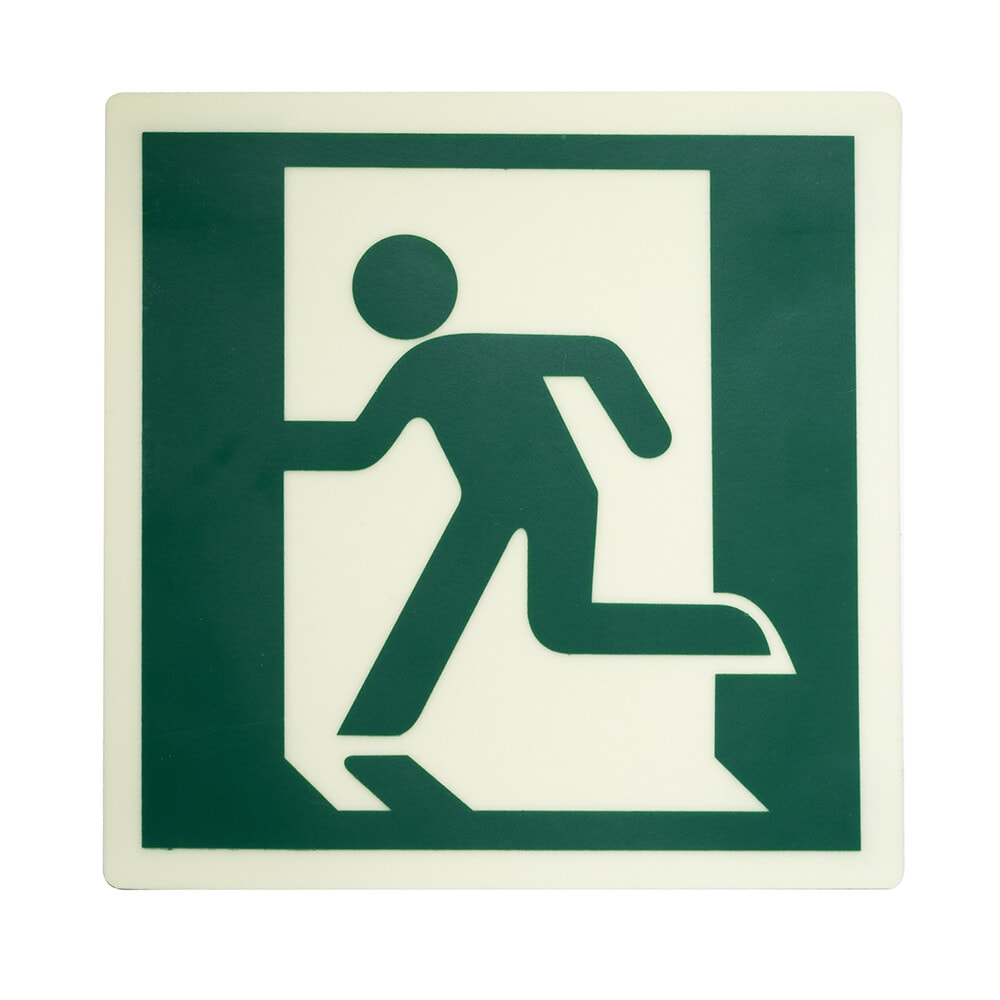

    Photoluminescent Running Man Right Directional Sign
