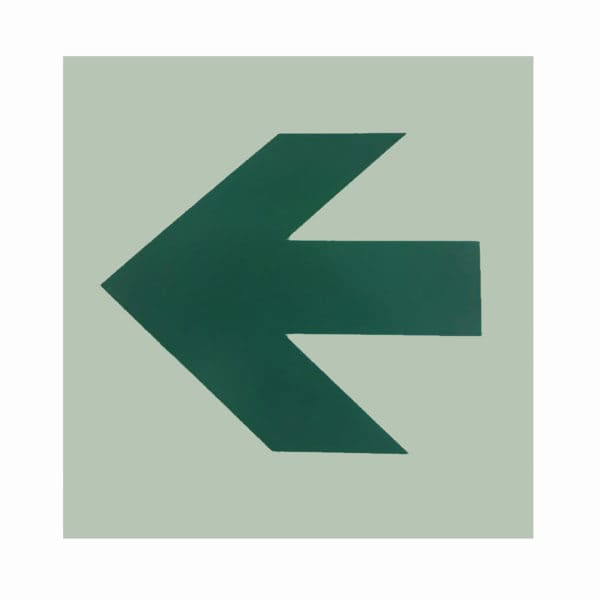

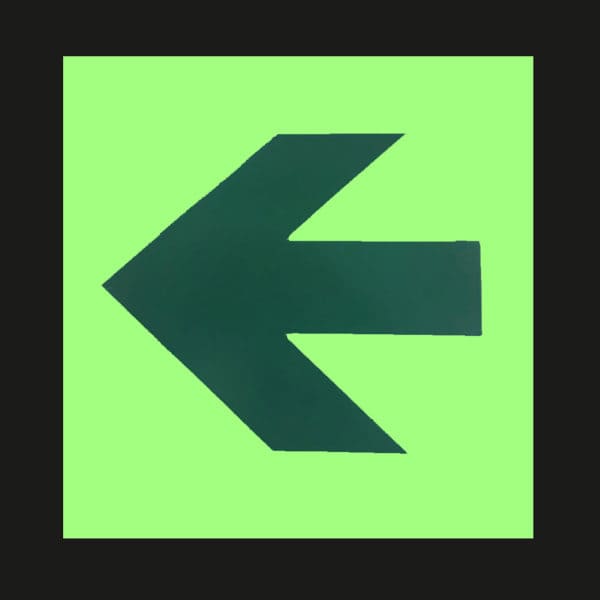

Photoluminescent Straight Arrow Directional Sign

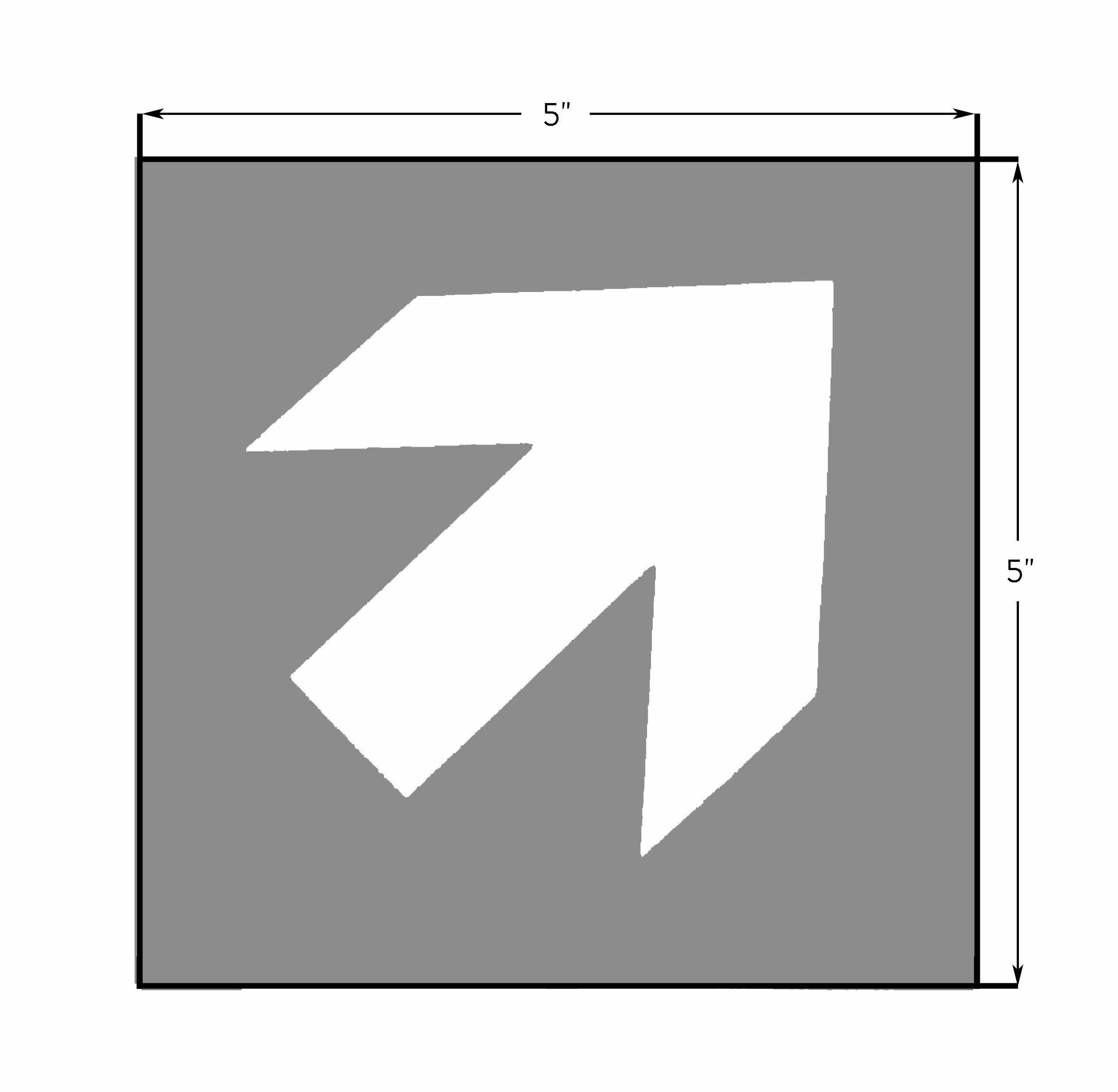

A photoluminescent diagonal arrow sign. 5-inch by 5-inch square. An easy peel and stick application. Activated by natural artificial light.

Combine one Straight or Diagonal Arrow Sign with one Running Man Left or Right Sign to create directional signage. With only 4 symbols, you can mark any direction of your egress path. Just place one running man sign with one arrow sign pointing up or down to the exit floor. The arrows can be turned, so that each possible direction can be indicated. The directional signs are to is to be equally placed along the escape routes to direct occupants to the final exit.

Smooth easy cleanable surface.

  • Green arrow on photoluminescent background
  • 5” x 5”
  • Best when paired with Running Man
  • UL 1994 listed
Get A Sample
Categories: ,

DOWNLOADS

Standard Options
Short Description Photoluminescent custom made sign. Placed in corridors and rooms, spaces where the exits is the least obvious to direct occupants to exit discharge.
Attachment Hardware Peel and Stick Adhesive Backing Included.
Size 12 Inch x 18 Inch (Minimum Size)
Features Includes minimum features listed. May include optional features per customer request.

INTERNATIONAL BUILDING CODE

The Safe-T-Nose Luminous Egress Path Markings meet the following Building, Fire & Life Safety Codes:

  • 2009, 2012 — IBC/IFC Section 1024 – Luminous Egress Path Markings
  • 2015 & 2018 — Section 1025
  • 2009 — NFPA 101 and 170
  • 2013 — NYC LL 141 Section BC 1024 Luminous Egress Path Markings
  • 2004 — NYC LL 26 Of 2004 Reference Standard 6-1
  • Connecticut State Fire Safety Code Section 1026 Floor Proximity Egress Path Markings
