STNRS
STNRS
  • STNRS
  • STNRS

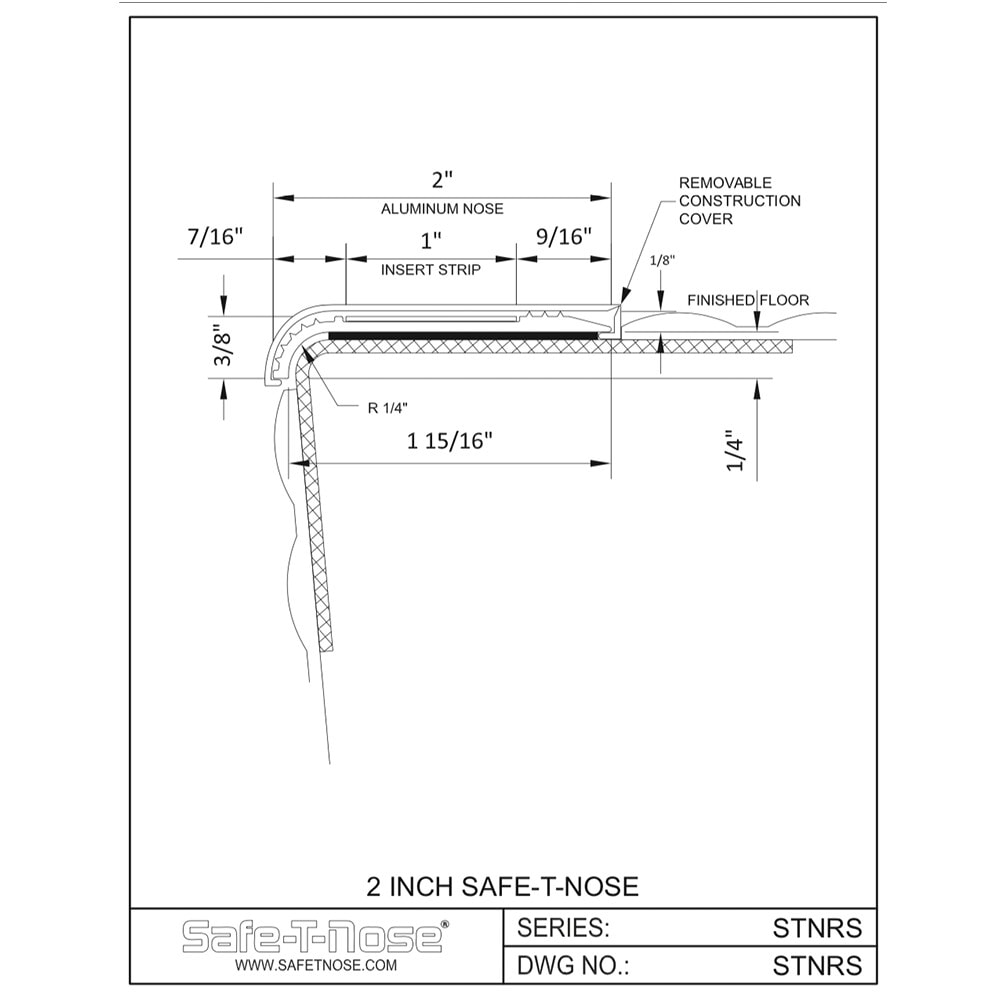

    • A durable commercial grade, 2-inch-wide step edge for stair manufacturers, with replaceable 1” Photo-Glo® strip.

    Photo-Glo® – utilizes the same industrial grade solid polymer used in golf balls, imbedding photoluminescent pigment, the glow-in-the-dark material. This creates a durable material that is approximately 50% brighter than the code requires. Photo-Glo® comes with and industry leading 25-year warranty.

    With proper design planning, the nosings are shop applied during the fabrication process. The construction cover protects the nosing during fabrication and building construction.

    Safe-T-Nose Shop Applied stair nosings are for indoor or outdoor use.

    Get A Sample
    SKU: STNR-S Categories: ,

    DOWNLOADS

    OPTIONS

    Photo-Glo is laminated to the anodized aluminum extrusion and meets IBC/IFC guidelines. UL 410, UL 1994 listed and exceeds ASTM E2072 and 2073 requirements. ANSI A137.1 Slip Testing – Wet. U.S. Patent #D621961, other patents pending.

    Product Code: STNRS Standard Options Alternate Options
    Aluminum Nosing Color Clear Anodized Yellow Powder Coat – Black Powder Coat – Custom Powder Coat
    Insert Stripe STNF STNF-S9203 – Safety Yellow Traction – Black Traction
    Construction Cover CCM
    Attachment Hardware Contact us for more information.
    Length Sold by the linear foot. Up to 12 feet, to the nearest 1/16″

    INTERNATIONAL BUILDING CODE

    The Safe-T-Nose Retrofit Stair Nosings meets the following Building, Fire & Life Safety Codes:

    • 2009, 2012 — IBC/IFC Section 1024 – Luminous Egress Path Markings
    • 2015 & 2018 — Section 1025
    • 2009 — NFPA 101 and 170
    • 2013 — NYC LL 141 Section BC 1024 Luminous Egress Path Markings
    • 2004 — NYC LL 26 Of 2004 Reference Standard 6-1
    • Connecticut State Fire Safety Code Section 1026 Floor Proximity Egress Path Markings
    NOSING COLOR

    Clear Coated Anodized Aluminum, Yellow Powder-Coated Aluminum, Black Powder-Coated Aluminum
    INSERT STYLE

    1” Photo-Glo Strip (STNF), 1” Acrylic Photoluminescent Strip (S9203), 1” Black Traction Tape, 1” Yellow Traction Tape
    OPTIONS

    Patented Construction Cover, 3M VHB adhesive peel & stick backing

    Reviews

    There are no reviews yet.

    Be the first to review “STNRS”

    Your email address will not be published. Required fields are marked *

    Related products

    • STNC

      STNC

      Select options This product has multiple variants. The options may be chosen on the product page

      STNC

      Four piece design; 2” non-conductive pvc isolator, replaceable anodized nosing, replaceable 1” Photo-Glo® strip.

      Patented Construction Cover included.

      Photo-Glo® – utilizes the same industrial grade solid polymer used in golf balls, imbedding photoluminescent pigment, the glow-in-the-dark material. This creates a durable material that is approximately 50% brighter than the code requires. Photo-Glo® comes with an industry leading 25-year warranty.

      SKU: STNC Categories: ,
    • S9203PM

      S9203PM

      S9203PM

      Our most economical nosing. The photoluminescent insert embeds the assembly into place. Patented protective cover protects photoluminescent acrylic tape from paint and dirt. Perfect for cast-in-place, precast tread or floor and mid-level landings. 1” x 12’ strips. Photoluminescent strip comes with temporary protective cover. Install during the landing pour.

      SKU: S9203PM Categories: ,
    • STNR

      STNR

      Select options This product has multiple variants. The options may be chosen on the product page

      STNR

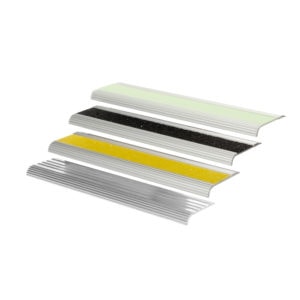

      Low profile, 2” wide anodized aluminum nosing with replaceable 1” patented Photo-Glo® or traction strip. Designed for existing stairway, bleacher, auditorium and sports stadium steps.
