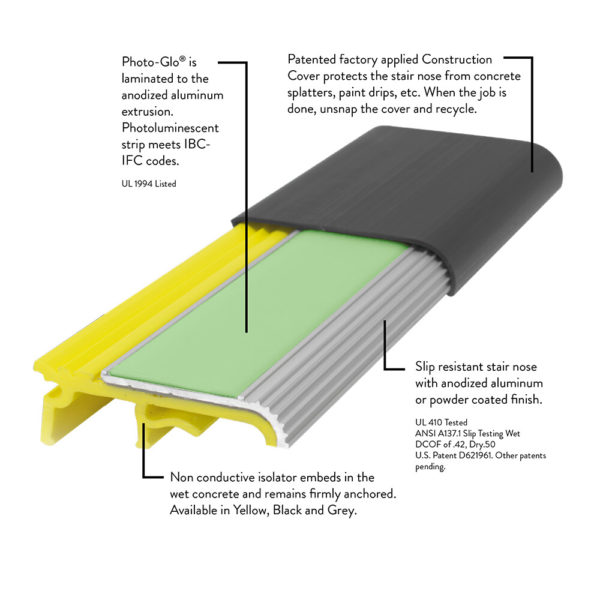

Four piece design; 2” non-conductive pvc isolator, replaceable anodized nosing, replaceable 1” Photo-Glo® strip.

Patented Construction Cover included.

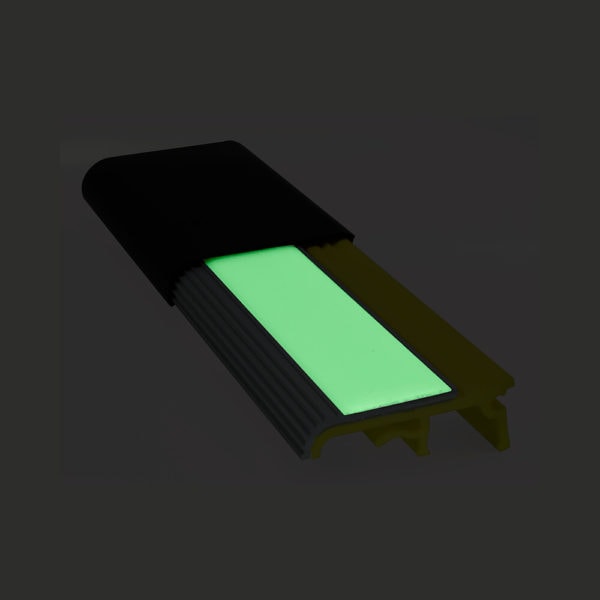

Photo-Glo® – utilizes the same industrial grade solid polymer used in golf balls, imbedding photoluminescent pigment, the glow-in-the-dark material. This creates a durable material that is approximately 50% brighter than the code requires. Photo-Glo® comes with an industry leading 25-year warranty.

SKU: STNC Categories: ,

OPTIONS

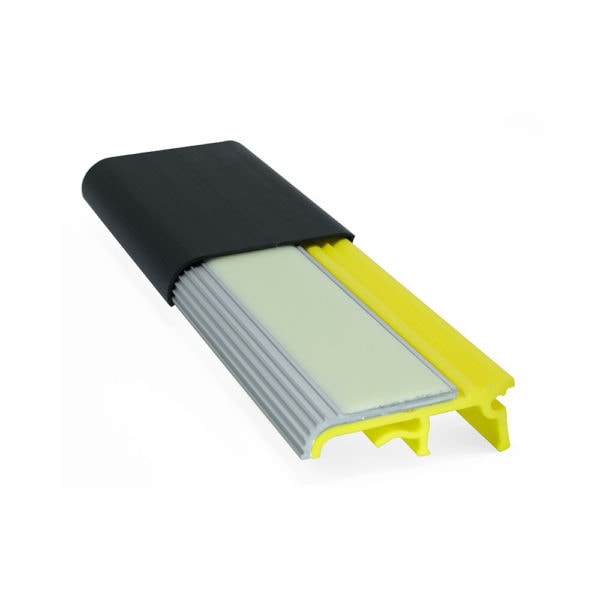

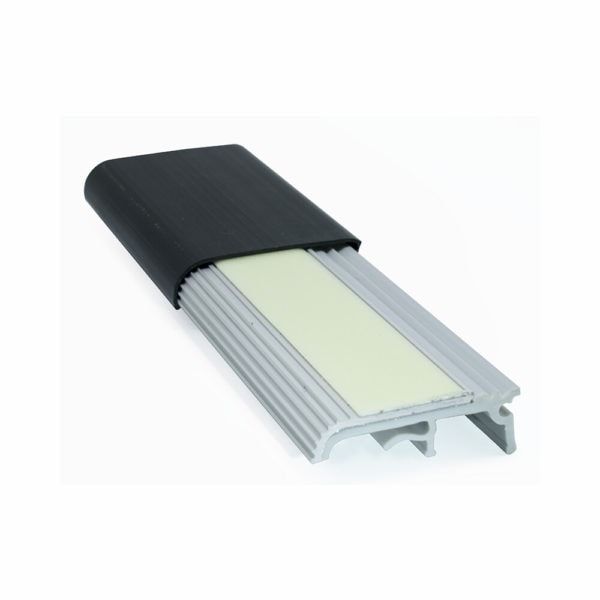

  • Black, Grey or Yellow isolator color
  • Black or Yellow powder coated aluminum
  • Black or Yellow traction strip

Photo-Glo is laminated to the anodized aluminum extrusion and meets IBC/IFC guidelines. UL 410, UL 1994 listed and exceeds ASTM E2072 and 2073 requirements. ANSI A137.1 Slip Testing – Wet. U.S. Patent #D621961, other patents pending.

Product Code: STNC Standard Options Alternate Options
Aluminum Nosing Color Clear Anodized Yellow Powder Coat – Black Powder Coat – Custom Powder Coat
PVC Isolator Color Yellow Black, Gray, Custom
Insert Stripe STNF Black Traction – Safety Yellow Traction
Construction Cover CCM

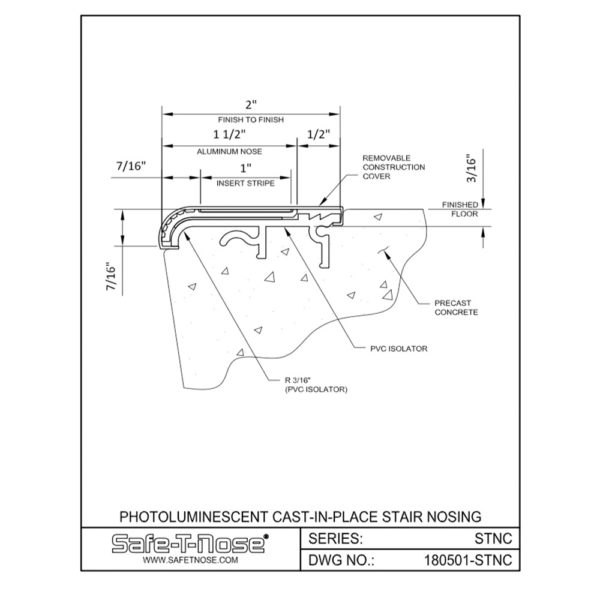

Attachment Hardware N/A – Isolator embeds into wet concrete.
Length Sold by the linear foot. Up to 12 feet, to the nearest 1/16 inch.

INTERNATIONAL BUILDING CODE

The Safe-T-Nose Cast-In-Place Stair Nosings meets the following Building, Fire & Life Safety Codes:

  • 2009, 2012 — IBC/IFC Section 1024 – Luminous Egress Path Markings
  • 2015 & 2018 — Section 1025
  • 2009 — NFPA 101 and 170
  • 2013 — NYC LL 141 Section BC 1024 Luminous Egress Path Markings
  • 2004 — NYC LL 26 Of 2004 Reference Standard 6-1
  • Connecticut State Fire Safety Code Section 1026 Floor Proximity Egress Path Markings
Isolator Color

Black, Grey, Yellow

Nosing Color

Clear Anodized Aluminum, Black Powder Coated Aluminum, Yellow Powder Coated Aluminum

Insert Style

1” Photo-Glo® Strip (STNF), 1" Black Traction Strip, 1" Yellow Traction Strip
