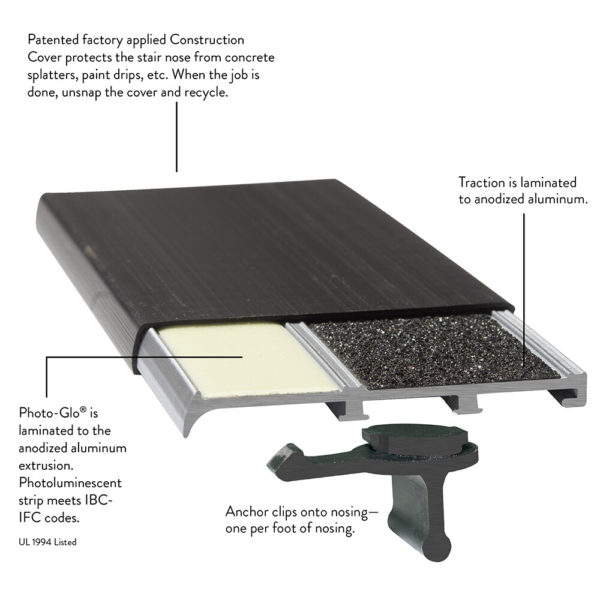

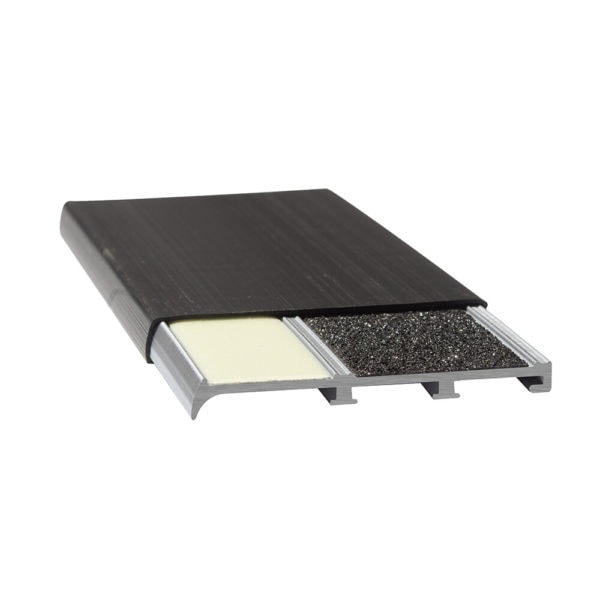

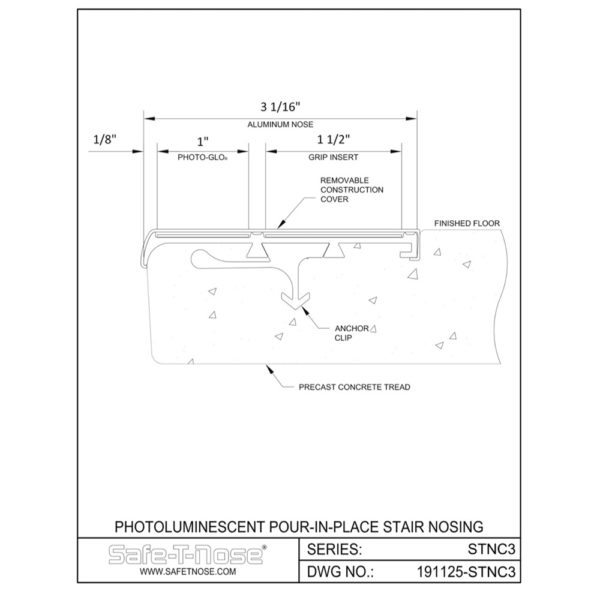

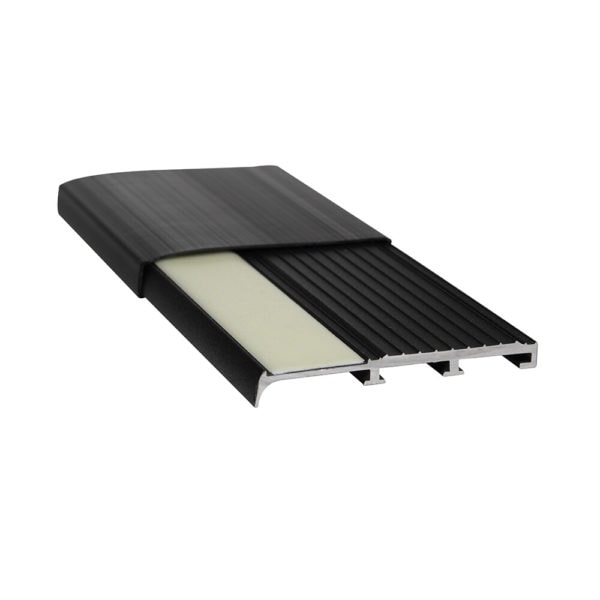

3” anodized aluminum nosing, with replaceable 1” Photo-Glo® strip and 1 1/2” black traction strip, anchors clip onto the steel stair pan to hold nosing in place as concrete is poured.

Patented Construction Cover included.

Photo-Glo® – utilizes the same industrial grade solid polymer used in golf balls, imbedding photoluminescent pigment, the glow-in-the-dark material. This creates a durable material that is approximately 50% brighter than the code requires. Photo-Glo® comes with an industry leading 25-year warranty.

Get A Sample
SKU: STNC3 Categories: , ,

DOWNLOADS

OPTIONS

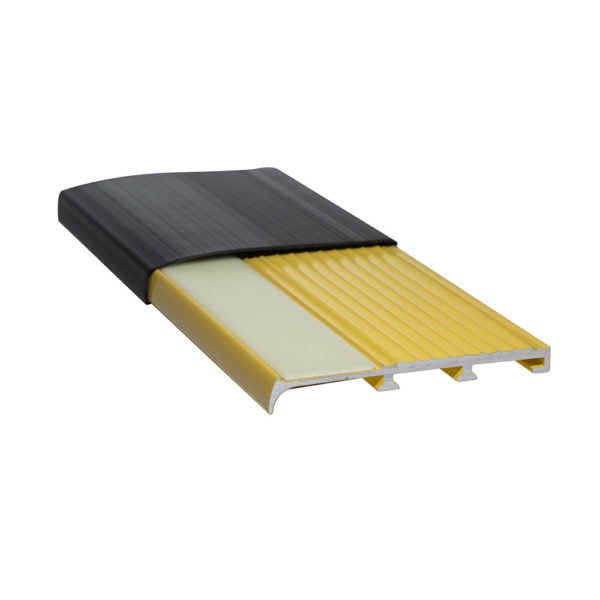

  • Black or Yellow powder coated aluminum
  • Black or Yellow traction strip

Photo-Glo is laminated to the anodized aluminum extrusion and meets IBC/IFC guidelines. UL 410, UL 1994 listed and exceeds ASTM E2072 and 2073 requirements. ANSI A137.1 Slip Testing – Wet. U.S. Patent #D621961, other patents pending.

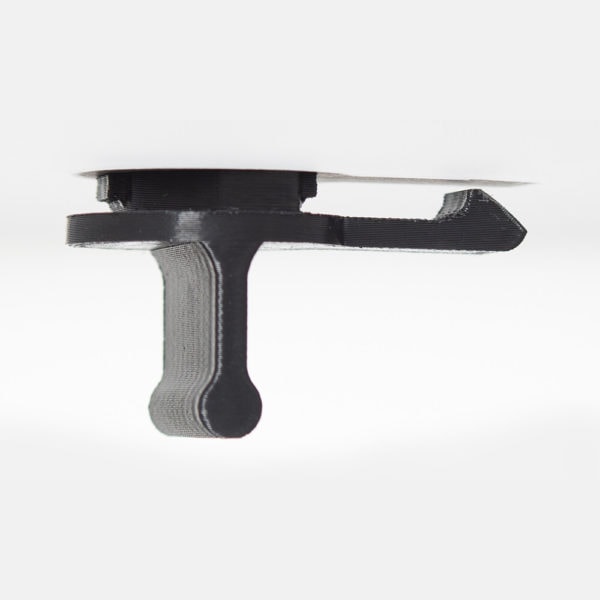

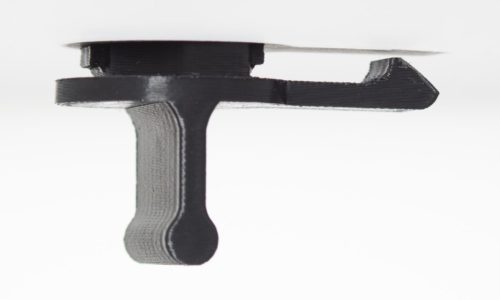

  • Anchors included
  • Anchor slides into STNC3
  • Use 1 anchor per foot of nosing
Product Code: STNP Standard Options Alternate Options
Aluminum Nosing Color Clear Anodized Yellow Powder Coat, Black Powder Coat, Custom Powder Coat
Insert Stripe STNF w/ Black Traction Safety Yellow Traction
Construction Cover CCX

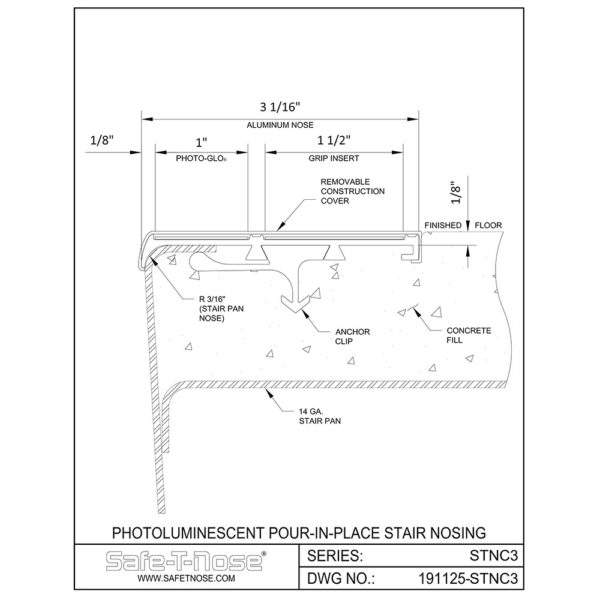

Attachment Hardware Anchors included – Clips to the steel stair pan and embeds into wet concrete Use one anchor for every foot of nosing
Length Sold by linear foot Up to 12 feet, to the nearest 1/16″

INTERNATIONAL BUILDING CODE

The Safe-T-Nose Pour-In-Place Stair Nosings meets the following Building, Fire & Life Safety Codes:

  • 2009, 2012 — IBC/IFC Section 1024 – Luminous Egress Path Markings
  • 2015 & 2018 — Section 1025
  • 2009 — NFPA 101 and 170
  • 2013 — NYC LL 141 Section BC 1024 Luminous Egress Path Markings
  • 2004 — NYC LL 26 Of 2004 Reference Standard 6-1
  • Connecticut State Fire Safety Code Section 1026 Floor Proximity Egress Path Markings
Nosing Color

Clear Anodized Aluminum, Black Powder Coated Aluminum, Yellow Powder Coated Aluminum
Traction Insert Style

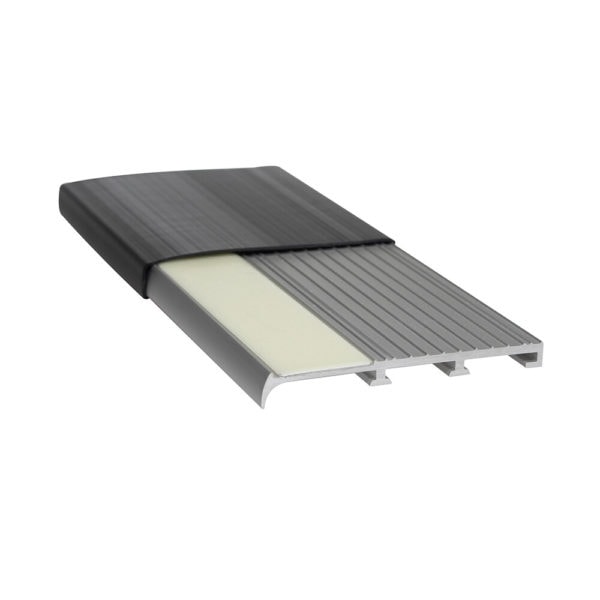

1 1/2” Ribbed Anodized Aluminum, 1 1/2” Black Traction Strip, 1 1/2” Yellow Traction Strip
