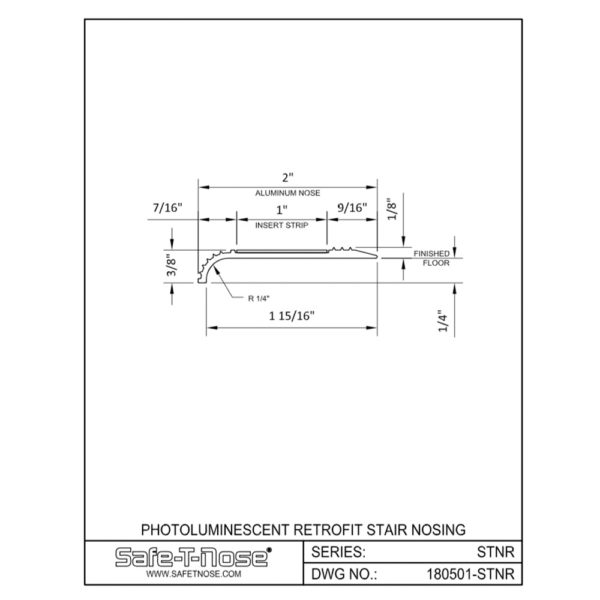

Low profile, 2” wide anodized aluminum nosing with replaceable 1” patented Photo-Glo® or traction strip. Designed for existing stairway, bleacher, auditorium and sports stadium steps.

Photo-Glo® – utilizes the same industrial grade solid polymer used in golf balls, imbedding photoluminescent pigment, the glow-in-the-dark material. This creates a durable material that is approximately 50% brighter than the code requires. Photo-Glo® comes with an industry leading 25-year warranty.

Get A Sample
SKU: STNR Categories: ,

DOWNLOADS

Product Code: STNR Standard Options Alternate Options
Aluminum Nosing Style Anodized w/ Insert or Ribbed
Aluminum Nosing Color Clear Anodized Yellow Powder Coat – Black Powder Coat – Custom Powder Coat
Insert Stripe STNF STNF – S9203 – Safety Yellow Traction – Black Traction
Construction Cover Optional CCM
Attachment Hardware Optional Bostik 1100FS Adhesive
Length Sold by the linear foot. Up to 12 feet, to the nearest 1/16 inch.

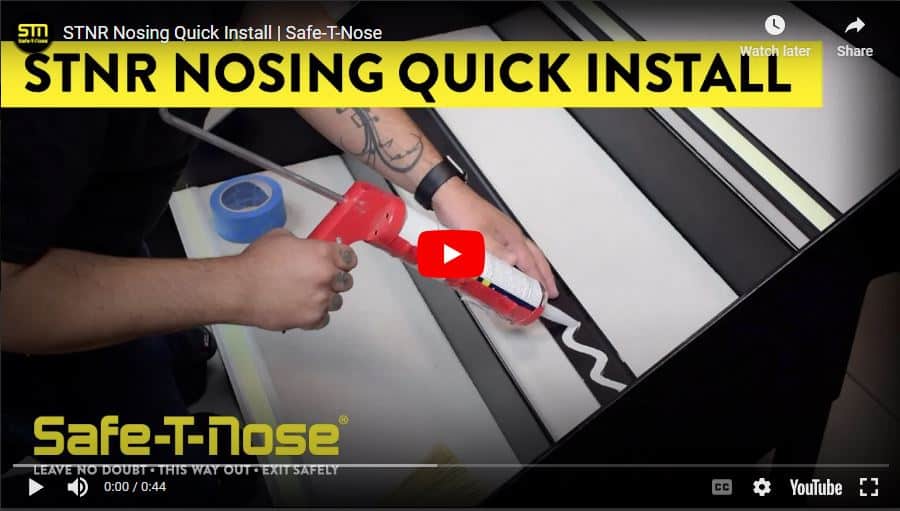

VIDEO

INTERNATIONAL BUILDING CODE

The Safe-T-Nose Retrofit Stair Nosings meets the following Building, Fire & Life Safety Codes:

  • 2009, 2012 — IBC/IFC Section 1024 – Luminous Egress Path Markings
  • 2015 & 2018 — Section 1025
  • 2009 — NFPA 101 and 170
  • 2013 — NYC LL 141 Section BC 1024 Luminous Egress Path Markings
  • 2004 — NYC LL 26 Of 2004 Reference Standard 6-1
  • Connecticut State Fire Safety Code Section 1026 Floor Proximity Egress Path Markings
NOSING COLOR

Clear Coated Anodized Aluminum, Black Powder-Coated Aluminum, Yellow Powder-Coated Aluminum
INSERT STYLE

1” Photo-Glo Strip (STNF), 1” Acrylic Photoluminescent Strip (S9203), 1” Black Traction Tape, 1” Yellow Traction Tape
OPTIONS

Patented Construction Cover, 3M VHB adhesive peel & stick backing
